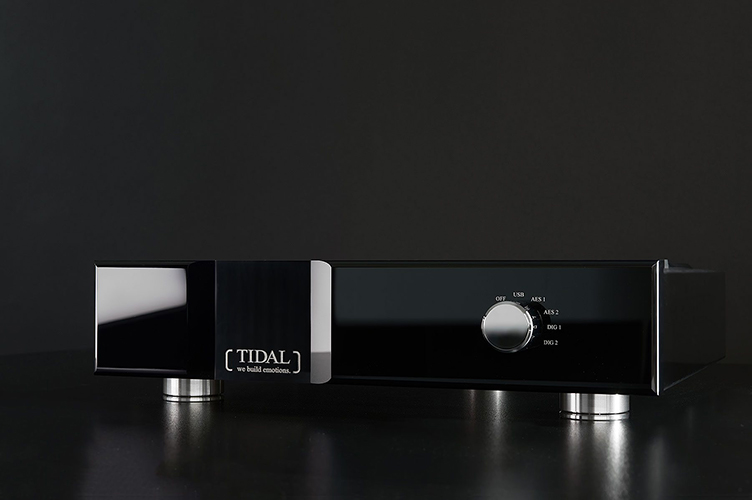

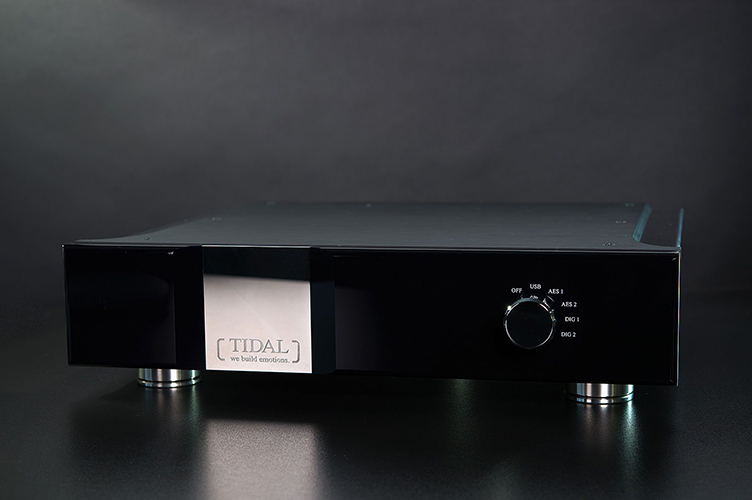

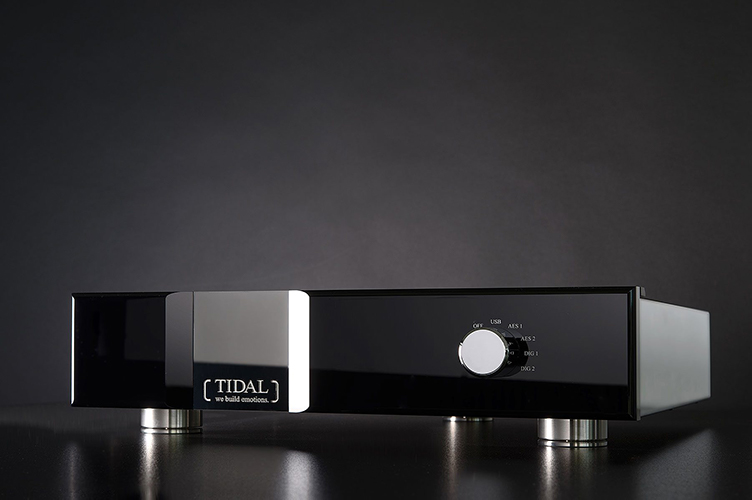

The Camira is the reference digital-analog-converter from TIDAL – and its performance is exceptional.
Designed without compromises it offers a true digital to analog output conversion, no matter PCM or native dsd. The Camira TIDAL’s proprietary Analog Signal Remediation Technology
With it, we are able to bring back the analog signal from any 44.1 KHz signal, which contains the most used formats: every CD and every music streaming services.
The TIDAL Camira uses none of the existing technologies like upsampling, oversampling, clocking or re-clocking. None of this is necessary since it uses an unique FPGA technology remediating the 44.1 KHz signal back to analog in combination with a fully discrete non-oversampling ladder DAC.
Of course it also has all the TIDAL classic build details, for e.g. such as the original TIDAL reference pure silver hollow conductor cable inside from the power input to the PCB input. But first above all it is delivering one hell of a sound quality. We would go so far and say even: second to none.
Colors:
Pure discrete designed 24 bit non-oversampling R2R ladder DAC without pre-ringing and post-ringing
Proprietary USB-to-I²S interface directly into the I²S interface of the ladder DAC without detouring USB-to-SPDIF > SPDIF-to-I²S > I²S-to-DAC
Proprietary ASRT Analog Signal Remediation Technology
True balanced output concept without any sound-changing inverted signal generation (like with transformer outputs)

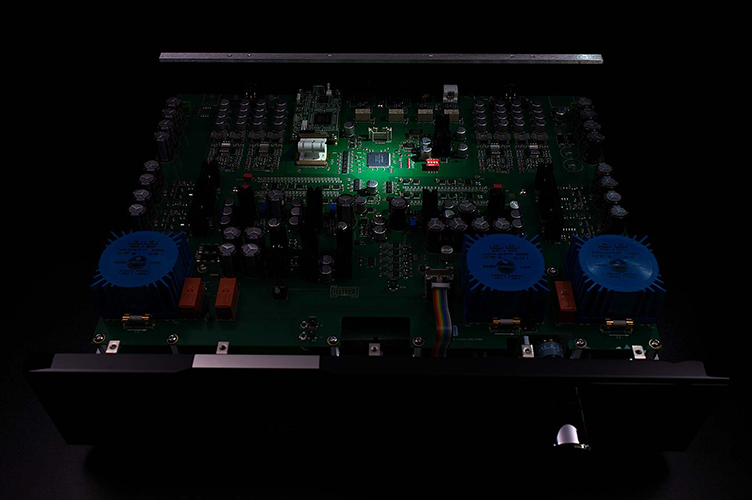

Every function-module has its own voltage supply, separated for each channel, left and right, for e.g. such as for the amplification, the DAC, the PCM-unit and the USB-module and others. All together 20 ultra low noise voltage supplies.
The best cables are: no cables at all.

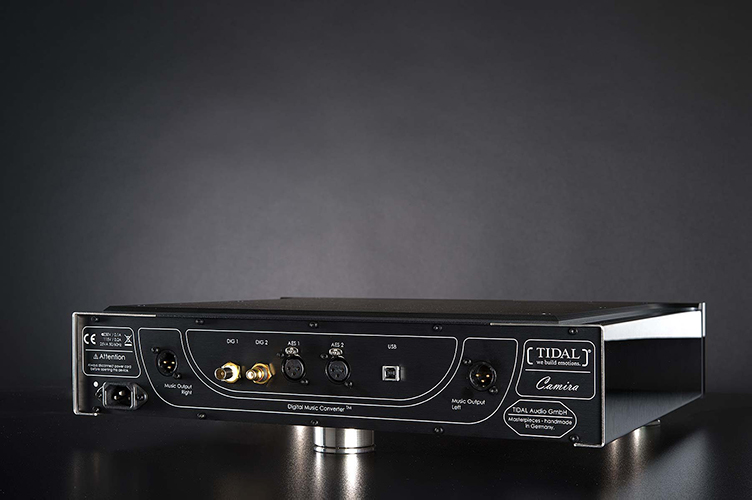

2 x digital input AES (XLR)
2 x digital SPDIF (coaxial BNC, cinch RCA)
1 x asynchronous USB class 2 input for PCM and DSD/DXD audio formats
Up to 384 KHz sampling rate
384 KHz/24 bit PCM and up to DSD256
0,01% tolerance precision resistors
Femto clock ultra low noise oscillator (-169 dB)
Fully discrete Class-A output amplifier
Ultralow-ESR organic capacitors
Dimensions: 44cm x 13cm x 39cm / 17.3″ x 5.1″ x 15.3″ (width x height x length)
Weight: 24 lbs. / 11 kg
