The crown jewel of the Mingus series offers the strength and clarity that only Diamond drivers can.
We forged our current design and technology in a beautifully formed Mingus cabinet. Employing technology and design cues from Coltrane and Heritage, it bridges the gap between both.
Using finest components we could find, it is the ultimate expression of our product design philosophy.

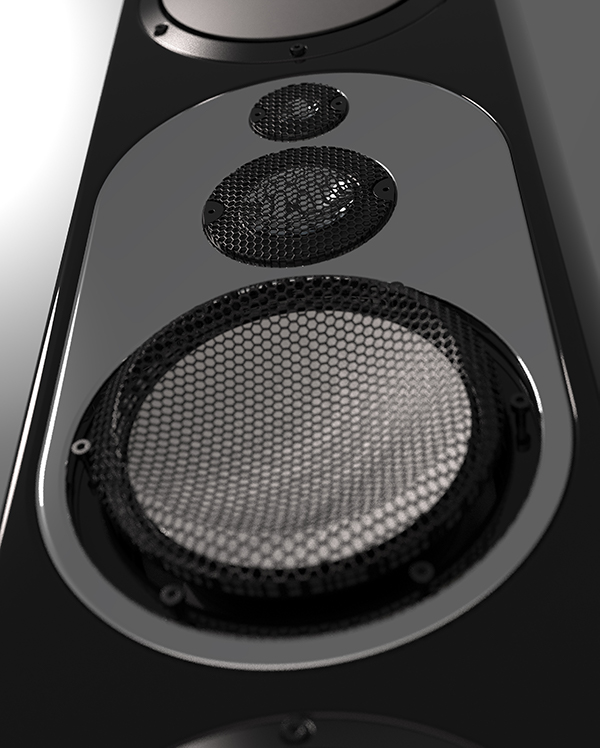

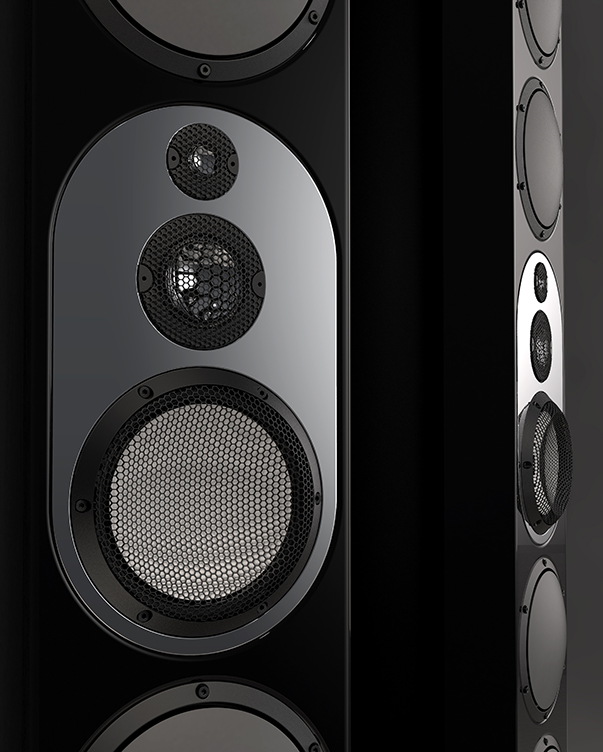

Mingus Orchestra uses 51mm and 20mm Diamond drivers: technology we normally reserve for our premium models. It’s a 4-way speaker that steps out of the shadow of Coltrane Supreme 2 and Coltrane Momento 2.
Designed with our first order crossover and the very highest quality components, it has performance comparable to Coltrane and stand-alone elegance.
Frequency range: 22-100000 Hz +-2dB
Power rating: 450 W
Sensitivity: 89 dB / 1 m / 2.83V
Impedance: 6 ohm (3.1 Ohm min)
First order: 350, 3800 & 8000 Hz
Terminals: WBT Nextgen Bi-wire
Jorma Design (optional Statement)
Cabinet: 25-42 mm fibre laminate Piano Black, with Solid Wood top and bottom

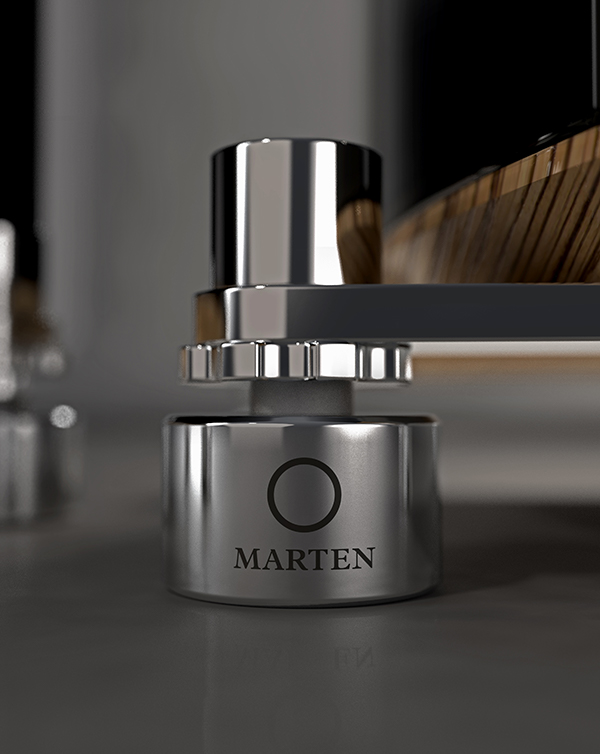

Stands: Polished stainless steel with Marten IsoPucks
Dimensions W x H x D:
29 x 171 x 42 cm (11.4 x 67.3 x 16.5 ”)
Net weight: 130 Kg (288 lbs)
