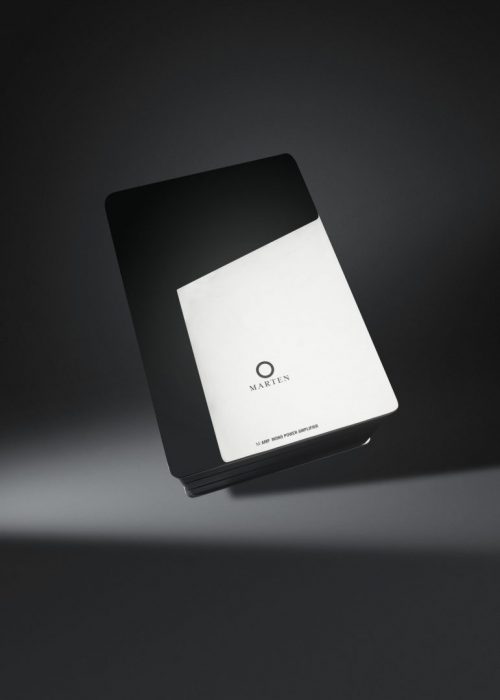

M•AMP Series
Mono Power Amplifier
In our search for perfection, for the optimum sound for our speakers, we reached the logical conclusion: the need for our own, technically groundbreaking and musically exceptional power amplifier.
Details of Product
M•Amp Mono Power Amplifier is a joint venture between Leif Olofsson, chief designer of Marten, and Patrik Bostrom, founder of the design house Anaview AB in Sweden, now CTO of Abletec A/S. He developed a revolutionary new loop linearization technology called AMS (Adaptive Modulation Servo) that M•Amp is based on.
Technical Specification
Max Power @ 8 Ohm, 1% THD / 550 W
Max Power @ 4 Ohm, 1% THD / 1000 W
Max Power @ 2 Ohm, 1% THD / 1700 W
THD @ 1 W, 8 Ohm, 20-20000 Hz / 0.0012%
THD @ 10 W, 8 Ohm, 20-20000 Hz / 0.002%
THD @ 100 W, 8 Ohm, 20-20000 Hz / 0.006%
THD @ 300 W, 8 Ohm, 20-20000 Hz / 0.02%
THD @ 400 W, 8 Ohm, 20-20000 Hz / 0.05%
Unweighted noise / ←uVrms
Output impedance, 20-20000 Hz / ←30 mOhm
Frequency response 20-20000 Hz / +0, -0.05 dB
Frequency response DC-120000 Hz / +0, -3 dB
Power supply
Transformer / 2 KVA
Electrolytic capacity / 190000 uF
Dimension WxHxD / 370 x 270 x 530 mm (14.5 x 10.6 x 20.9”)
Net weight / 47 Kg
