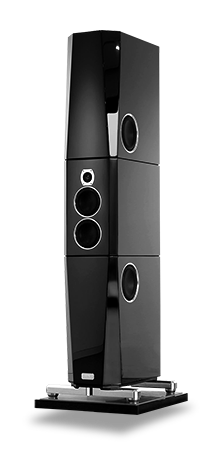

TIDAL’s milestone and full-size reference class with its unique concept, design and performance.
The first generation Sunray was and still is – very literally – a Statement, beyond the alleged top league and must allow only one comparison: a very good seat in a live concert.
Reference reviews and many ‘Best Sound of Show’s lead to an actually incredible number of sales given the exclusivity of this speaker.
The Sunray G2 generation offers a complete new speaker from the inside while having the iconic and unique outer design only subtle improved – such as all classics.
It uses all completely new developed BCC-drivers, a new crossover topology, TIDAL’s proprietary cabinet material TIRALIT. An all-new designed backside terminal with pure silver binding posts is the entry for the finest signals one like to feed this speaker with.
Colors:
Includes:
2 x TIDAL-NV-bass modules
1 x TIDAL-ND-RMD high-midrange modules
cabinet-walls up to 5″ thick
optimized internal airflow
step response controlled point-source bass reproduction
quasi-infinite front-baffle by ‘pneumatic-airwall’
phaseshift-controlled submodules and phase controlled cabinet correction for real recording reproductions without “blowing it up” to unreal dimensions
1 x 30 mm (1,2″) diamond tweeter
2 x 173 mm (7″) BCC midrange woofer with low distortion motor
4 x 222 mm (9″) long excursion BCC woofer
unique AEROTUNE-System and VARIOGAIN, 2 times adjustable
passive crossover network with ultra low tolerance components
adjustable diamond-tweeter curve
pure silver binding posts
special 5-part TIDAL stainless steel isolators
8 x trigger bars out of massive stainless steel, 32 Kg (70 lbs.) per speaker
Nominal power handling: 200 / >500 VA
Nominal impedance: 4 Ohm
Recommended power amplifier: 20 watt and up
Speaker dimensions: 199 cm x 34 cm x 60 cm / 78,3″ high x 13,4″ wide x 23,6″ deep
Dimensions with vario feet (from ground to top): 206 cm high / 81″ high
Speaker weight without packaging: 2 x 322 Kg / 2 x 702 lbs
Shipping weight with packaging: 2 x 380 Kg / 2 x 830 lbs
Shipping dimensions: 2 flightcases, each flight case is 125 cm length x 80 cm width x 100 cm height / 50″ length x 31,5″ width x 39″ height
